MikroMasch

HQ:CSC17/Hard/Al BS

产品品牌:S0301AI

产品型号:MikroMasch

产品资料: 点击下载

Product Description

Cantilevers of the 17 series with the low spring constant are used in contact mode AFM mostly. It is possible to adjust the scanning parameters to minimize the tip-sample force. Imaging in tapping mode gives the true topography of the soft samples.

A wear-resistant coating with thickness 20 nm is applied to the tipside of the cantilever. The coating is chemically inert and more hydrophobic than Si with natural oxide layer.

Coating Description

Wear-resistant coating with thickness 20 nm on the tipside of the cantilever. Al coating with thickness 30nm on the backside of the cantilever.

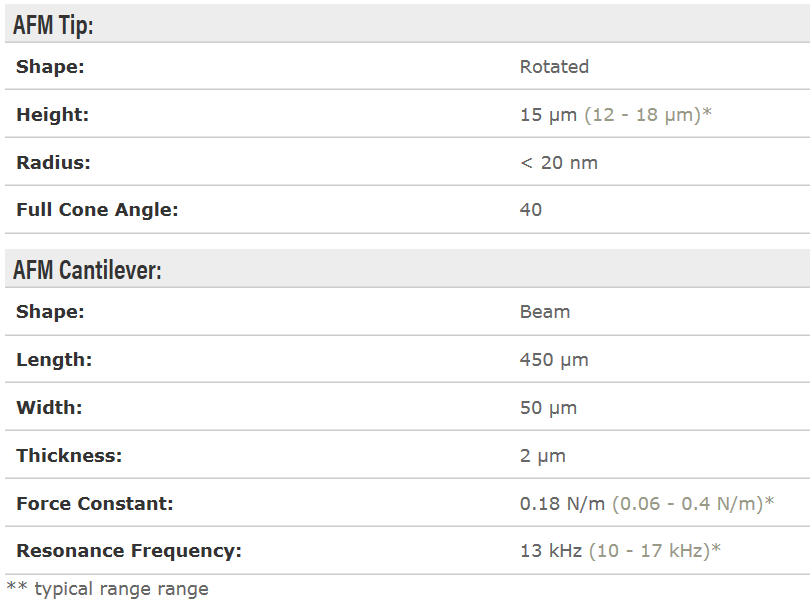

Full Technical Data
